The mining industrial 10 Gigabit Ethernet ring network system is equipped with explosion-proof and intrinsically safe 10 Gigabit network switches and intrinsically safe 10 Gigabit network switches to meet the requirements of different operating environments according to the needs of different scenarios. The system has the ability to handle 10 Gigabit data throughput and access 10 Gigabit devices, which supports integrated communication technologies such as OT data, IT data, voice, and video, and integrates various automation subsystems organically to solve problems such as high control data delay and video data lag during mine construction. The system provides high bandwidth, low delay, stable and reliable Ethernet data transmission system for intelligent mine construction, safe production, unified scheduling, cooperative management, and other applications with requirements for real-time data.

The system complies with the IEEE802.3 protocol and has Ethernet 10 Gigabit optical ports, Ethernet Gigabit optical ports, and Ethernet adaptive electrical ports, supporting full duplex/half duplex transmission.

The system supports redundancy network structures such as ring type.

The system has initialization parameter settings and power-off protection functions, and initialization parameters can be inputted and modified through the network or programming interface.

The system has network management capability and supports management functions such as SNMP.

The system has VLAN function and flow control function.

The system has self diagnosis and fault indication functions.

The system has power, working status, and communication status indication functions.

The system has the function of displaying the battery information of the backup battery, which is placed in an independent battery compartment. The supporting battery management system has functions such as battery overcharge voltage protection, battery over discharge voltage protection, OCCHG, OCDSG, output short circuit protection, and temperature protection.

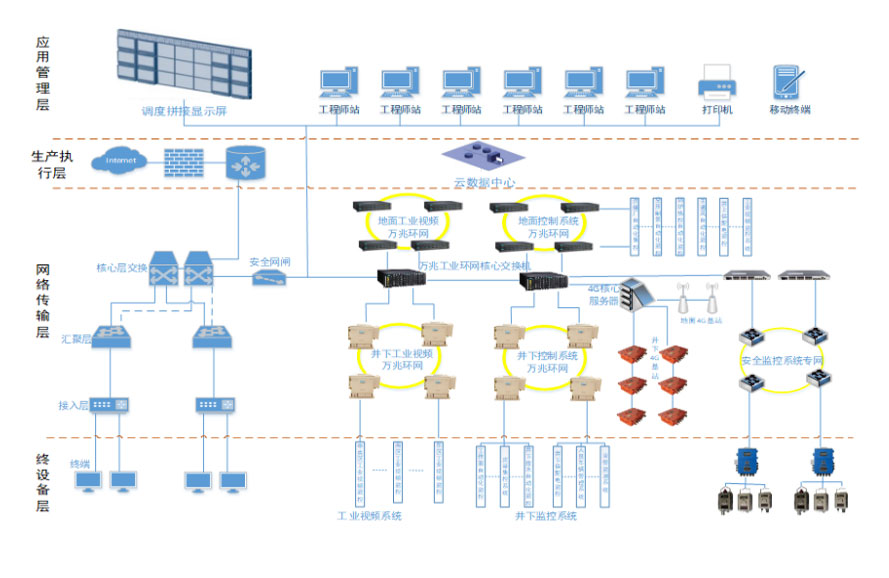

System composition diagram
